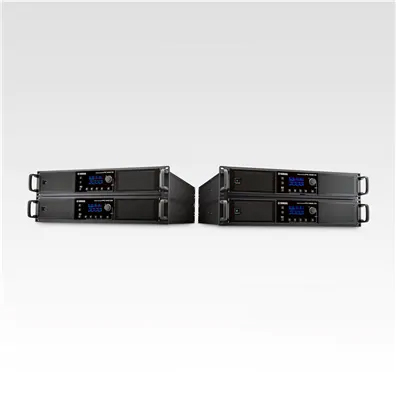

PC-D / DI 系列
Power. Versatility. Control
PC-D/DI系列已不僅是一款簡單的功放，它們還是第一款能夠?yàn)槎鄥^(qū)域固定安裝或現場擴聲應用形成一個完全連接的音頻網絡核心的功放。不斷變化的現場需求和綜合性功放以及擴聲技術的快速進步通常需要功放同時兼有廣泛的用途和大功率，而PC-D/DI系列恰好能夠滿足這一需求。 現在，您可以充分利用功放全面的矩陣處理能力和靈活性，這些能力通過Dante連接的簡單性和易用性得到提升，創建一個高度集成、有效的聲音解決方案。此外，與ProVisionaire系列的完整兼容使您能夠完全控制整個網絡鏈，包括調音臺、功放、處理器和音箱。簡而言之，PC-D/DI系列將為您帶來每個音頻工程師夢寐以求的全面控制。
PC-D / DI 系列
立即購買
新一代網絡功放系統，集成了強大的矩陣功能以及Dante連接能力，進一步強化了使用靈活性與規模性。
產品信息如有變動，恕不另行通知。網站上信息僅供參考，一切以具體實物為準。
產品信息

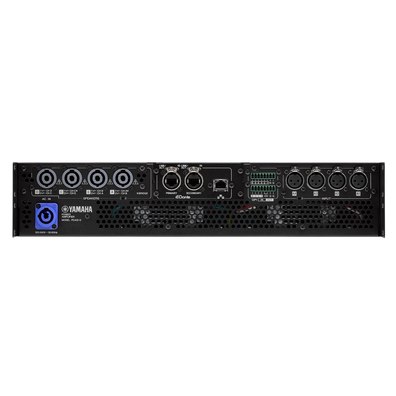

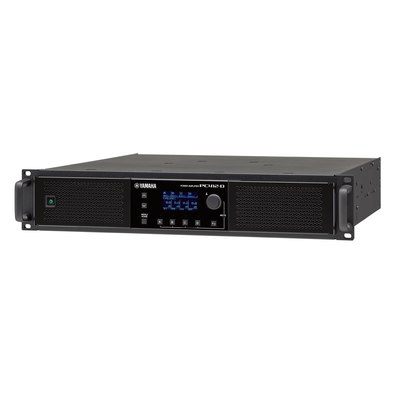

PC412-D 功放
PC-D/DI系列已不僅是一款簡單的功放。PC-D/DI系列功放具有令人印象深刻的20 x 8輸入矩陣能力，并能與Dante I/O結合，為任何系統的功能性帶來驚人的變化。標配強大的內置揚聲器處理器。PC-D/DI系列還與Provisionaire Touch和Provisionaire Control兼容，我們可以根據需要提供定制型的遠程遙控。1200W x 4 8Ω時。
- 4 x 1200W 8Ω時
- 20 x 8 強大的輸入矩陣功能
- 采樣頻率高達96k
- 16通道Dante輸入/輸出
- 揚聲器處理器，如16段PEQ、分頻器、濾波器、延遲和限制器
- 雅馬哈揚聲器預設
- 通過ProVisionaire Touch/Control實現遠程控制

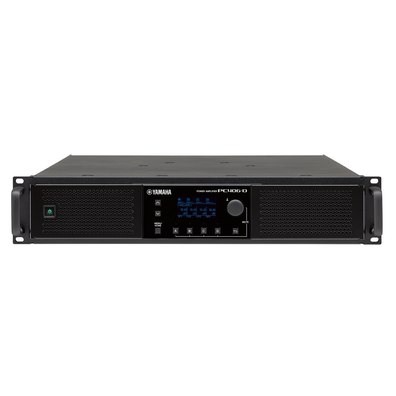

PC406-D 功放
PC-D/DI系列已不僅是一款簡單的功放。PC-D/DI系列功放具有令人印象深刻的20 x 8輸入矩陣能力，并能與Dante I/O結合，為任何系統的功能性帶來驚人的變化。標配強大的內置揚聲器處理器。PC-D/DI系列還與Provisionaire Touch和Provisionaire Control兼容，我們可以根據需要提供定制型的遠程遙控。600W x 4 8Ω時。
- 4 x 600W 8Ω時
- 20 x 8 強大的輸入矩陣功能
- 采樣頻率高達96k
- 16通道Dante輸入/輸出
- 揚聲器處理器，如16段PEQ、分頻器、濾波器、延遲和限制器
- 雅馬哈揚聲器預設
- 通過ProVisionaire Touch/Control實現遠程控制

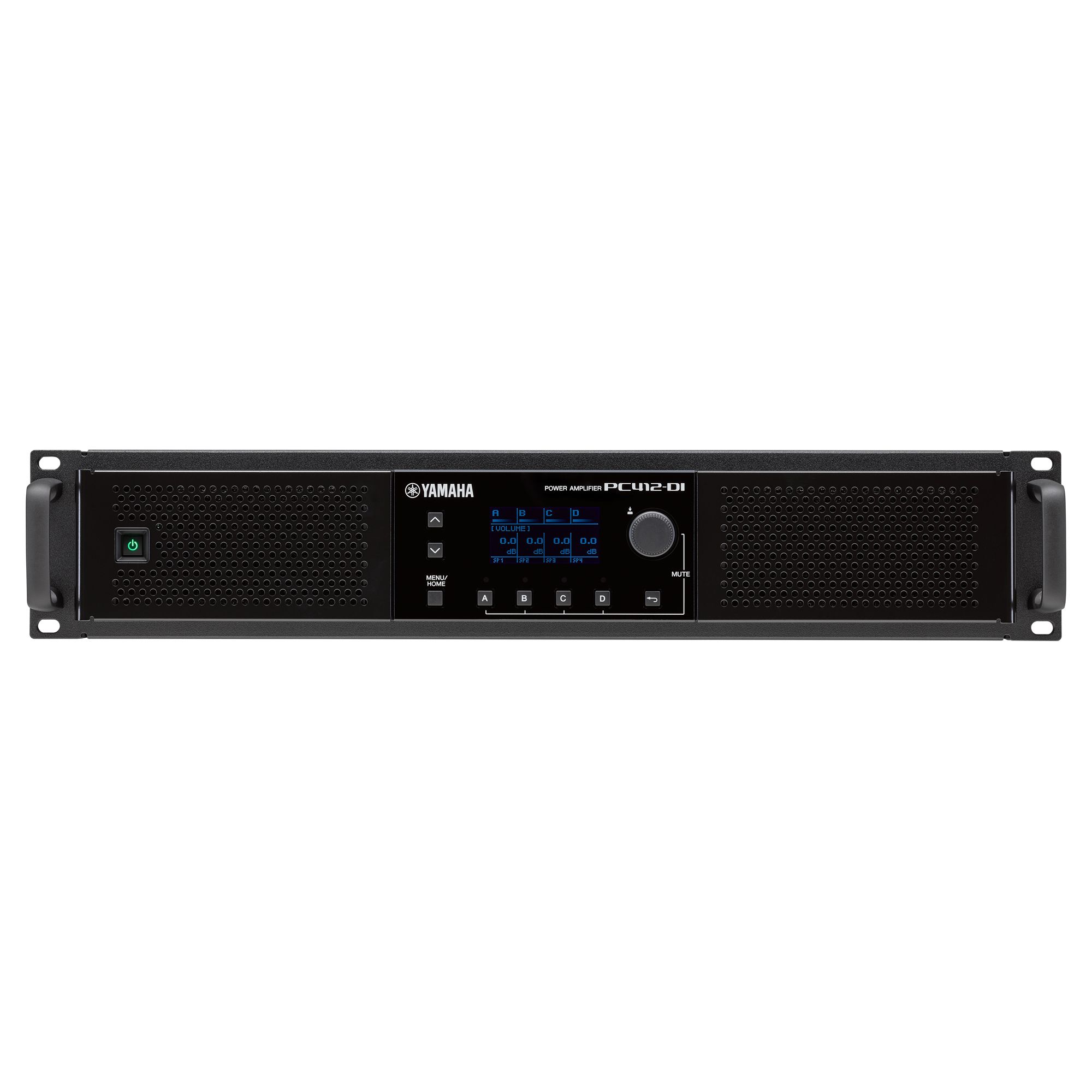

PC412-DI 功放
PC-D/DI系列已不僅是一款簡單的功放。PC-D/DI系列功放具有令人印象深刻的20 x 8輸入矩陣能力，并能與Dante I/O結合，為任何系統的功能性帶來驚人的變化。標配強大的內置揚聲器處理器。PC-D/DI系列還與Provisionaire Touch和Provisionaire Control兼容，我們可以根據需要提供定制型的遠程遙控。1200W x 4 8Ω時。可切換低阻抗和高阻抗音箱系統。
- 4 x 1200W 8Ω時，4 x 1200W 100V/70V時
- 20 x 8 強大的輸入矩陣功能
- 采樣頻率高達96k
- 16通道Dante輸入/輸出
- 揚聲器處理器，如16段PEQ、分頻器、濾波器、延遲和限制器
- 雅馬哈揚聲器預設
- 通過ProVisionaire Touch/Control實現遠程控制

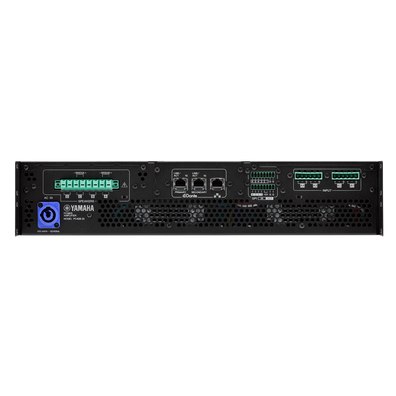

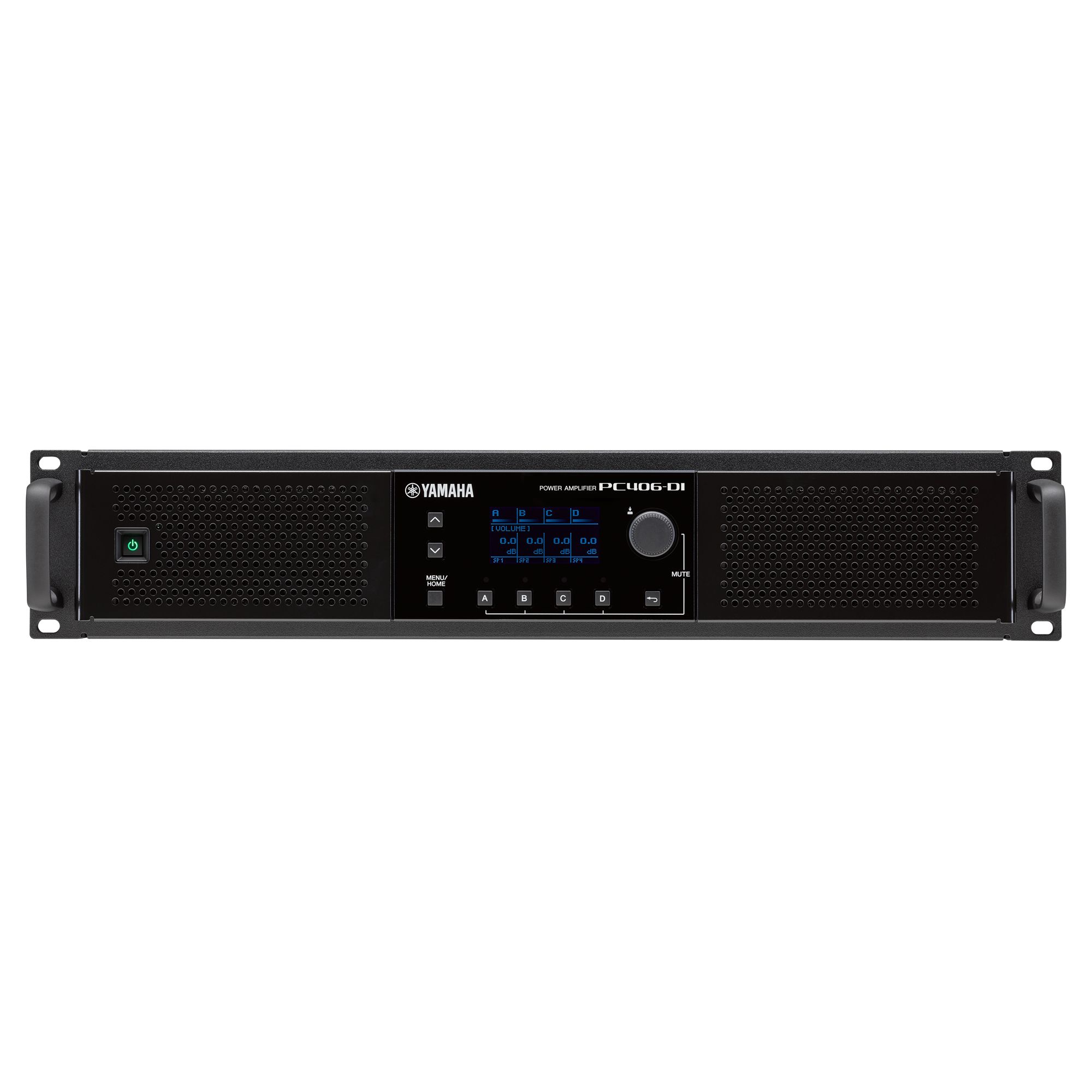

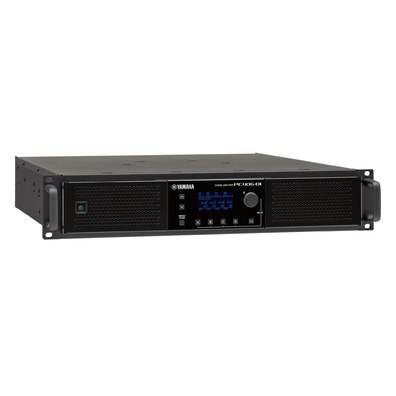

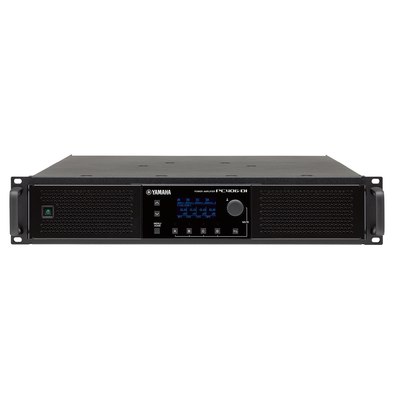

PC406-DI 功放
PC-D/DI系列已不僅是一款簡單的功放。PC-D/DI系列功放具有令人印象深刻的20 x 8輸入矩陣能力，并能與Dante I/O結合，為任何系統的功能性帶來驚人的變化。標配強大的內置揚聲器處理器。PC-D/DI系列還與Provisionaire Touch和Provisionaire Control兼容，我們可以根據需要提供定制型的遠程遙控。600W x 4 8Ω時。可切換低阻抗和高阻抗揚聲器系統。
- 4 x 600W 8Ω時，4 x 600W 100V/70V時
- 20 x 8 強大的輸入矩陣功能
- 采樣頻率高達96k
- 16通道Dante輸入/輸出
- 揚聲器處理器，如16段PEQ、分頻器、濾波器、延遲和限制器
- 雅馬哈揚聲器預設
- 通過ProVisionaire Touch/Control實現遠程控制
強大的矩陣功能和Dante I/O帶來卓越的靈活性
PC-D/DI系列功放具有令人印象深刻的20 x 8輸入矩陣能力，并能與Dante I/O結合，為任何系統的功能性帶來驚人的變化。PC-D/DI系列可作為輔助矩陣來擴展整個系統矩陣，甚至在沒有調音臺或額外的DSP的系統中，可以從其他模擬設備或Dante設備直接輸入聲音，以提供更靈活的路由能力。內置Dante輸入和輸出還允許冗余連接，能夠以高達96 kHz的采樣頻率低延遲處理16個輸入/16個輸出的音頻，同時將PC-D/DI系列與Provisionaire Control等遠程軟件相結合，提供更大的靈活性和直觀控制。

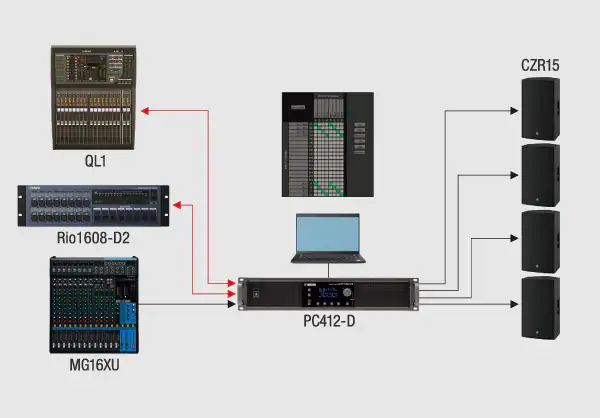

使用矩陣應用程序?qū)崿F(xiàn)靈活的路由
除了來自數字調音臺的聲音，模擬調音臺的聲音也能輸入至PC412-D中。輸入矩陣功能可用于將組合的聲音輸出到音箱或其他Dante設備。

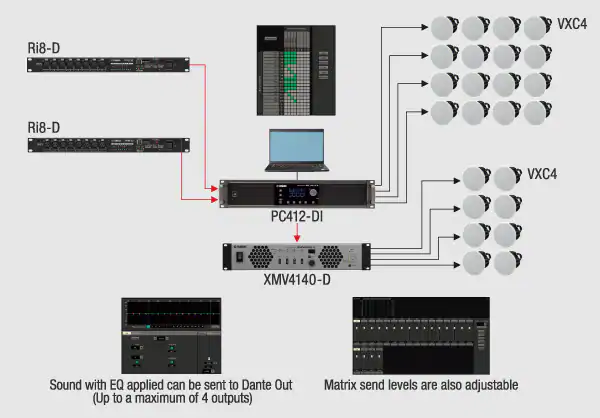

構建無調音臺系統
聲音從兩個設備的Dante輸入端傳送到PC412-DI中。輸入矩陣功能用于將組合的聲音傳送到音箱。此外，Dante輸出可用于將聲音與調整過的EQ一起發送至其他功放。
可靠的動能
PC-D/DI系列采用高效的D類功放，即使在高負載運行時也能提供卓越的音質和出色的精度與穩定性。“D”巡演型號和“DI”安裝型號都包含600 W和1200 W兩種版本，每款都具有最適合各自應用的連接。DI型號可以輕松處理高阻抗連接，允許構建由眾多音箱組成的系統。所有型號都配有可拆卸手柄和可更換的過濾器。

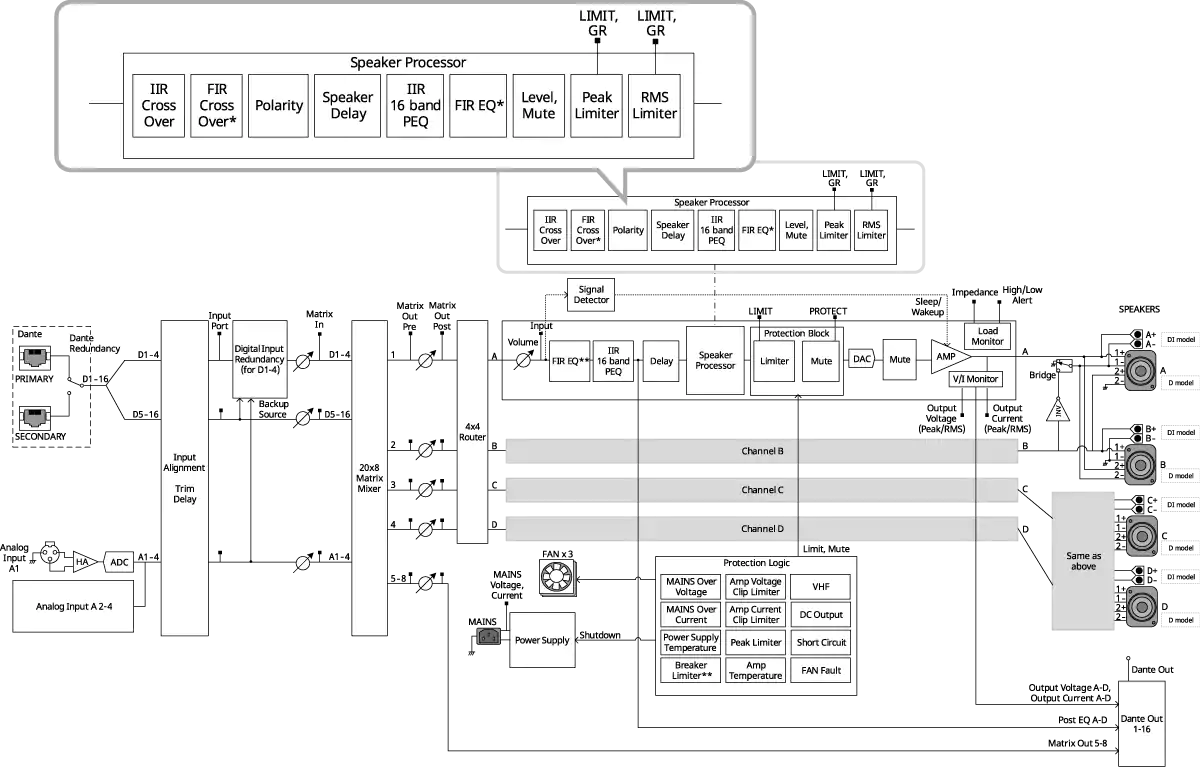

豐富的處理能力
PC-D/DI系列功放具有強大的內置揚聲器處理器，可提供16段PEQ、延遲、峰值限制器和RMS限制器等處理器，以及能夠?qū)崿F(xiàn)線性相位的FIR濾波器**，使用戶能夠精確且輕松地對音箱進行微調。Dante輸出可用于將房間EQ的進一步參數調整傳輸?shù)狡渌Ψ胖校瑥亩軌蚣袑?duì)多個功放通道的EQ進行調整。揚聲器預設庫中存儲了雅馬哈CZR系列和其他系列的優化預設，使您能夠輕松為系統加入恰到好處的揚聲器調整。
* 只能通過調用揚聲器預設數據進行配置
** 未來的固件版本中可實現

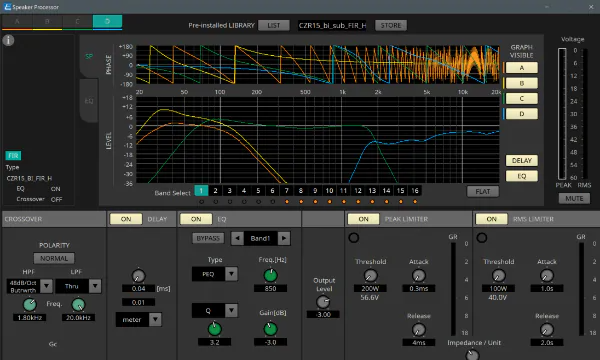

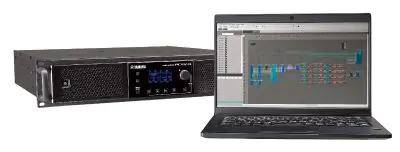

ProVisinaire Amp Editor

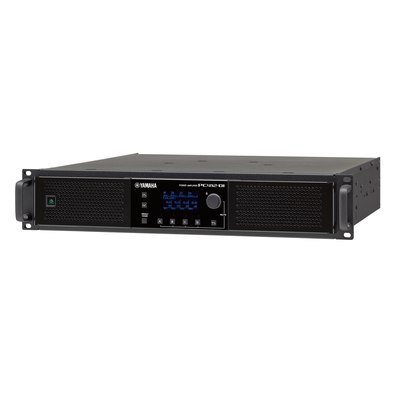

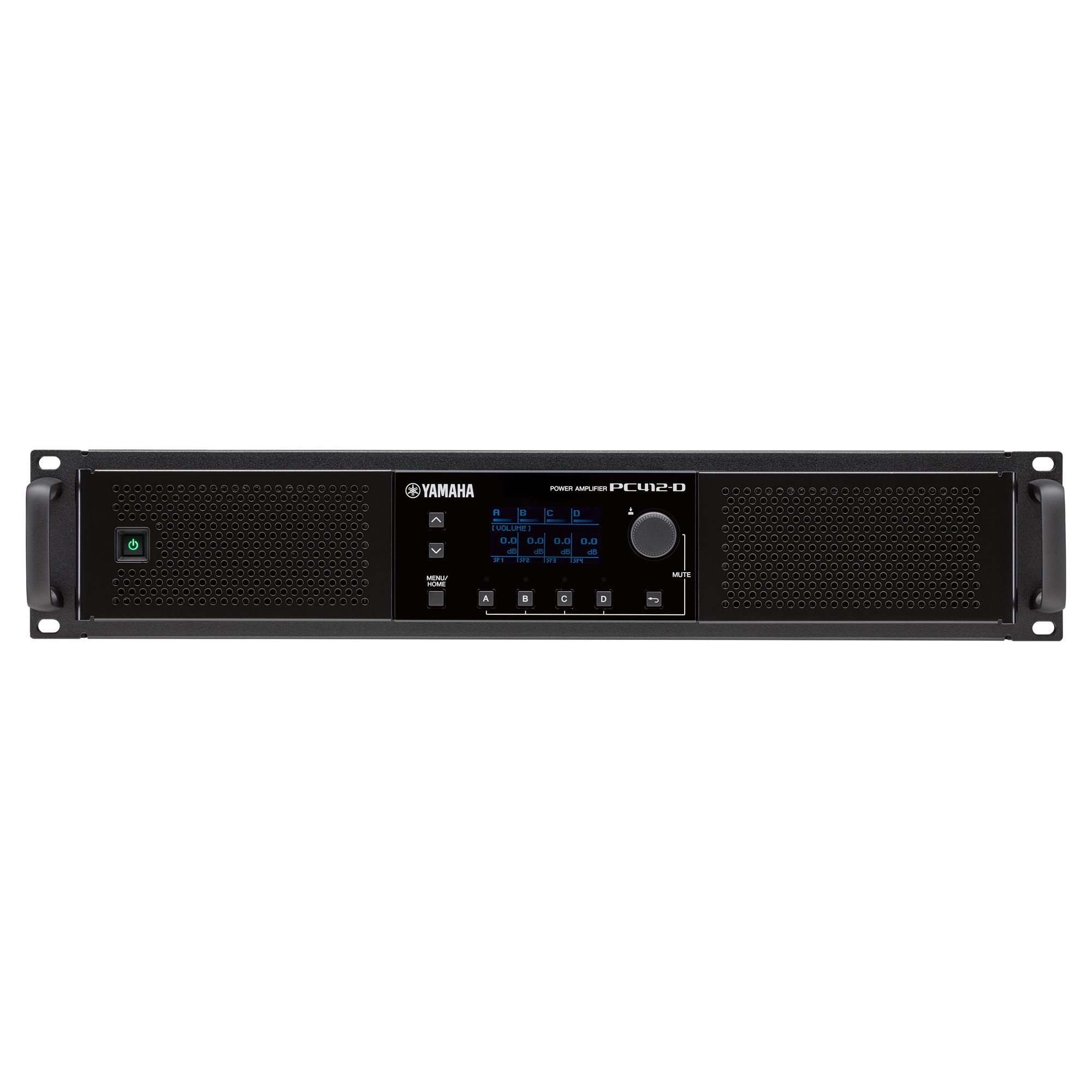

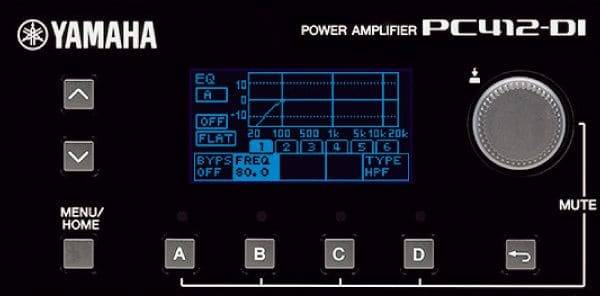

前面板
ProVisionaire系列……從開始至結束
Provisionaire Amp Editor是PC-D/DI系列專用的軟件應用程序，可用于微調各個設置，也可對功放進行分組，以設置EQ和延遲參數，并從單個控制面板調整音量。
PC-D/DI功放與Provisionaire Touch和Provisionaire Control兼容，我們可以根據需要提供定制型的遠程遙控。
| PC412-D | PC406-D | PC412-DI | PC406-DI | ||
|---|---|---|---|---|---|
| 輸出功率：1kHz，無失真，20msec爆音，所有驅動通道 | 16Ω | 600W x 4 | 300W x 4 | 600W x 4 | 300W x 4 |
| 8Ω | 1200W x 4 | 600W x 4 | 1200W x 4 | 600W x 4 | |
| 4Ω | 1900W x 4 | 900W x 4 | 1900W x 4 | 900W x 4 | |
| 2Ω | 2500W x 4 | 1300W x 4 | 2500W x 4 | 1300W x 4 | |
| 8Ω（BRIDGE模式） | 3800W x 2 | 1800W x 2 | 3800W x 2 | 1800W x 2 | |
| 4Ω（BRIDGE模式） | 5000W x 2 | 2600W x 2 | 5000W x 2 | 2600W x 2 | |
| Hi-Z（70V 模式） | - | - | 1200W x 4 | 600W x 4 | |
| Hi-Z（100V 模式） | - | - | 1200W x 4 | 600W x 4 | |
| 功放類型 | Class D, Single ended output | Class D, Single ended output | Class D, Single ended output | Class D, Single ended output | |
| 總諧波失真 | 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven) | 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven) | 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven), 0.01% (100V/70V, 1kHz, 10W, All channels driven), 0.1% (100V/70V, 1kHz, Half power, All channels driven) | 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven), 0.01% (100V/70V, 1kHz, 10W, All channels driven), 0.1% (100V/70V, 1kHz, Half power, All channels driven) | |
| 頻率響應 | +0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru) | +0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru) | +0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru) | +0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru) | |
| 串?dāng)_ | ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted) | ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted) | ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted) | ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted) | |
| 信噪比 | 112dB (8Ω, Gain setting = 32dB, A-weighted) | 109dB (8Ω, Gain setting = 32dB, A-weighted) | 112dB (8Ω, Gain setting = 32dB, A-weighted) | 109dB (8Ω, Gain setting = 32dB, A-weighted) | |
| 電壓增益/靈敏度 | 8Ω音量最大 | 32.0dB/+10.0dBu (Gain setting: 32dB), 26.0dB/+16.0dBu (Gain setting: 26dB), 38.0dB/+4.0dBu (Gain setting: +4dBu), 28.0dB/+14.0dBu (Gain setting: +14.0dBu) | 32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu) | 32.0dB/+10.0dBu (Gain setting: 32dB), 26.0dB/+16.0dBu (Gain setting: 26dB), 38.0dB/+4.0dBu (Gain setting: +4dBu), 28.0dB/+14.0dBu (Gain setting: +14.0dBu) | 32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu) |
| Hi-Z 100V 模式，音量最大 | - | - | 32.0dB/+10.2dBu (Gain setting: 32dB), 26.0dB/+16.2dBu (Gain setting: 26dB), 38.2dB/+4.0dBu (Gain setting: +4dBu), 28.2dB/+14.0dBu (Gain setting: +14.0dBu) | 32.0dB/+10.2dBu (Gain setting: 32dB), 26.0dB/+16.2dBu (Gain setting: 26dB), 38.2dB/+4.0dBu (Gain setting: +4dBu), 28.2dB/+14.0dBu (Gain setting: +14.0dBu) | |
| Hi-Z 70V 模式，音量最大 | - | - | 32.0dB/+7.2dBu (Gain setting: 32dB), 26.0dB/+13.2dBu (Gain setting: 26dB), 35.2dB/+4.0dBu (Gain setting: +4dBu), 25.2dB/+14.0dBu (Gain setting: +14.0dBu) | 32.0dB/+7.2dBu (Gain setting: 32dB), 26.0dB/+13.2dBu (Gain setting: 26dB), 35.2dB/+4.0dBu (Gain setting: +4dBu), 25.2dB/+14.0dBu (Gain setting: +14.0dBu) | |
| 保護電路 | 荷載保護 | POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically) | POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically) | POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically) | POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically) |
| 功放保護 | Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically) | Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically) | Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically) | Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically) | |
| 電源保護 | Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | |
| 冷卻 | 7 step variable speed fan x 3, front to rear airflow | 7 step variable speed fan x 3, front to rear airflow | 7 step variable speed fan x 3, front to rear airflow | 7 step variable speed fan x 3, front to rear airflow | |
| 最大輸入電壓 | +28dBu | +25dBu | +28dBu | +28dBu | |
| 輸入阻抗 | 20kΩ (balanced) | 20kΩ (balanced) | 20kΩ (balanced) | 20kΩ (balanced) | |
| 采樣頻率 | 96kHz | 96kHz | 96kHz | 96kHz | |
| A/D D/A 轉換器 | AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling | AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling | AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling | AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling | |
| Dante Interface | 通道計數 | 16 IN with Dante Redundancy, 16 OUT | 16 IN with Dante Redundancy, 16 OUT | 16 IN with Dante Redundancy, 16 OUT | 16 IN with Dante Redundancy, 16 OUT |
| 采樣頻率 | 96/88.2/48/44.1kHz | 96/88.2/48/44.1kHz | 96/88.2/48/44.1kHz | 96/88.2/48/44.1kHz | |
| Dante延遲 | 0.25/0.5/1/2/5ms | 0.25/0.5/1/2/5ms | 0.25/0.5/1/2/5ms | 0.25/0.5/1/2/5ms | |
| 位深 | 32/24bit | 32/24bit | 32/24bit | 32/24bit | |
| 處理器 | 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter | 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter | 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter | 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter | |
| 延遲 | Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz) | Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz) | Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz) | Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz) | |

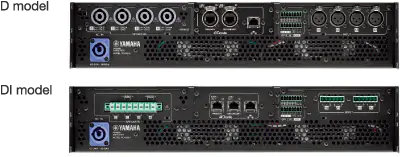

| I/O 接口 | 模擬輸入 | XLR-3-31 x 4 | XLR-3-31 x 4 | Euro block 6pin x 2 (4ch balanced input) | Euro block 6pin x 2 (4ch balanced input) |
| 數字 I/O | Dante Interface: etherCON x 2 (Redundant/Daisy Chain) | Dante Interface: etherCON x 2 (Redundant/Daisy Chain) | Dante Interface: RJ45 x 2 (Redundant/Daisy Chain) | Dante Interface: RJ45 x 2 (Redundant/Daisy Chain) | |
| 揚聲器輸出 | Neutrik speakON NL4 x 4 | Neutrik speakON NL4 x 4 | 7.62mm Euro block 8pin x 1 | 7.62mm Euro block 8pin x 1 | |
| 控制端口 | RJ45 x 1 | RJ45 x 1 | RJ45 x 1 | RJ45 x 1 | |
| AC | AC inlet (powerCON 20A) x 1 | AC inlet (powerCON 20A) x 1 | AC inlet (powerCON 20A) x 1 | AC inlet (powerCON 20A) x 1 | |
| 其它 | Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2) | Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2) | Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2) | Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2) | |
| 指示燈 | Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED) | Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED) | Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED) | Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED) | |
| 電源要求 | 100V - 240V 50Hz/60Hz ** | 100V - 240V 50Hz/60Hz ** | 100V - 240V 50Hz/60Hz ** | 100V - 240V 50Hz/60Hz ** | |
| 功耗 | 1850W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 105W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V) | 1050W (1/8 MAX power, 2Ω, Pink noise at all channels), 165W (Idle), 100W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V) | 1850W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 105W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V) | 1100W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 100W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V) | |
| 工作溫度 | 0°C to +40°C | 0°C to +40°C | 0°C to +40°C | 0°C to +40°C | |
| 存儲溫度 | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C | |
| 外形尺寸 | W | 480mm (18.90 inch) | 480mm (18.90 inch) | 480mm (18.90 inch) | 480mm (18.90 inch) |
| H | 88mm (3.46 inch): 2U | 88mm (3.46 inch): 2U | 88mm (3.46 inch): 2U | 88mm (3.46 inch): 2U | |
| D | 528mm (20.79 inch) | 528mm (20.79 inch) | 528mm (20.79 inch) | 528mm (20.79 inch) | |
| 凈重 | 16.0 kg (35.3 lbs) | 15.6 kg (34.4 lbs) | 16.0 kg (35.3 lbs) | 15.9 kg (35.1 lbs) | |
| 附件 | Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euro block plug 3.5mm 8p x 2, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4 | Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euro block plug 3.5mm 8p x 2, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4 | Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euroblock plug 3.5mm 8p x 2, Audio Input Euroblock plug 5.08mm 3p x 4, Cable tie x 4, Speaker Euroblock plug 7.62mm 8p x 1, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4 | Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euroblock plug 3.5mm 8p x 2, Audio Input Euroblock plug 5.08mm 3p x 4, Cable tie x 4, Speaker Euroblock plug 7.62mm 8p x 1, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4 | |
- *未來的固件版本中可實現
- **本設備的操作已確認可以在+/- 10%的額定供電電壓范圍內工作
固件 / 軟件
*PC-D/DI系列固件包含在“ProVisionaire Amp Editor”下載包內。
Previous versions
ProVisionaire Control
- Previous versions information
- ProVisionaire Control V3.8.0 for Win 10
- ProVisionaire Control V3.7.0 for Win 10
- ProVisionaire Control V3.6.1 for Win 10/8.1/7
- ProVisionaire Control V3.6.0 for Win 10/8.1/7
- ProVisionaire Control V3.5.0 for Win 10/8.1/7
- ProVisionaire Control V3.0.1 for Win 10/8.1/7
- ProVisionaire Control V3.0.0 for Win 10/8.1/7
- ProVisionaire Control V1.0.0 for Win 10/8.1/7
ProVisionaire Control KIOSK
- Previous versions information
- ProVisionaire Control KIOSK V3.8.0 for Win 10
- ProVisionaire Control KIOSK V3.7.0 for Win 10
- ProVisionaire Control KIOSK V3.6.1 for Win 10/8.1/7
- ProVisionaire Control KIOSK V3.6.0 for Win 10/8.1/7
- ProVisionaire Control KIOSK V3.5.0 for Win 10/8.1/7
- ProVisionaire Control KIOSK V3.0.1 for Win 10/8.1/7
- ProVisionaire Control KIOSK V3.0.0 for Win 10/8.1/7
- ProVisionaire Control KIOSK V1.0.0 for Win 10/8.1/7
產品手冊
PC-D / DI Series
產品說明書
其他（工程數據參數等）
ProVisionaire Amp Editor是一款Windows應用程序，可為雅馬哈的PC系列和XMV系列功率放大器提供多功能一體式的設置、控制和監控。ProVisionaire Amp Editor具有詳盡的圖形界面，有助于簡化設計，優化工作流程，還可為與PC系列功率放大器一同使用的CZR系列音箱提供線性相位FIR濾波器，除此之外，大量預設庫也幫助用戶更便捷地完成其他雅馬哈音箱的性能優化。ProVisionaire Amp Editor使設置和高品質聲音系統的調試過程更為順暢。
ProVisionaire Amp Editor可以與計算機中的ProVisionaire Control和平板設備中的ProVisionaire Touch結合使用，無論是系統設計和設置，還是日常操作和管理，可以對項目進行全面控制。Editor中的小裝置可以拖放到ProVisionaire Control中，也可輕松將參數分配至ProVisionaire Control KIOSK和ProVisionaire Touch KIOSK應用程序中。
兼容的設備（功率放大器）
PC系列：
PC406-D/PC406-DI/PC412-D/PC412-DI
XMV系列：
XMV4140/XMV4140-D/XMV4280/XMV4280-D/XMV8140/XMV8140-D/XMV8280/XMV8280-D
1.微調和高效的工作流程
ProVisionaire Amp Editor對于聲音工程師和系統集成商而言是一款強大的工具。
不僅可以對功率放大器和音箱參數進行全面詳細的控制，還能根據需要關聯/分組單個功放通道，也可以關聯相關EQ、延遲和其他參數。所有功能都有助于順利設置系統。

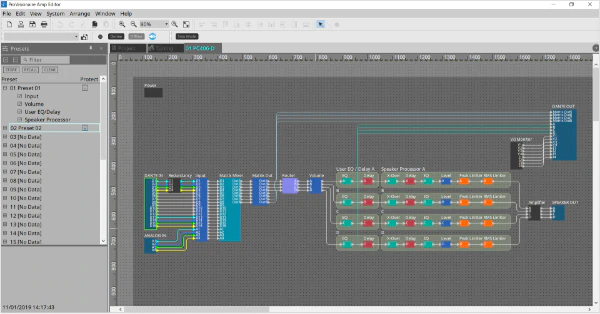

設備表畫面（PC系列）
設備表畫面（XMV系列）

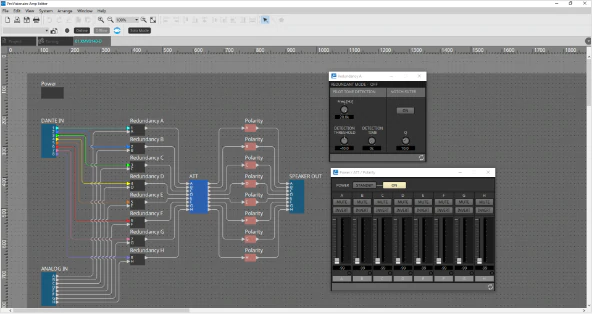

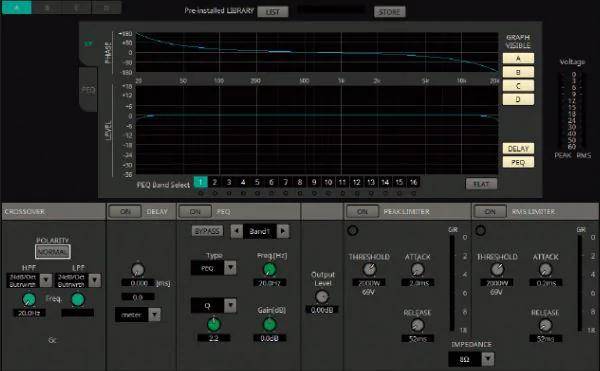

音箱處理器編輯器畫面（PC系列）

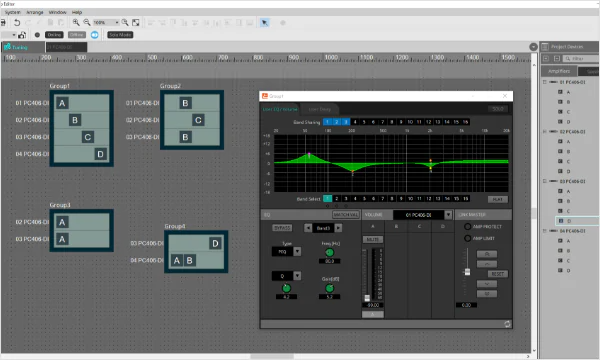

單獨的功放通道關聯/分組配置
2.對整個系統管理進行集中監控
ProVisionaire Amp Editor支持系統監控功能（ProVisionaire監視服務），可對連接到網絡的所有兼容設備進行集中監控。可實時查看操作狀態和設備溫度，警報和其他信息則同時記錄至計算機，大幅節省故障排除所需的時間和精力。
* PC系列放大器固件必須更新至V 1.0.2或更高版本才能使用ProVisionaire監視服務。PC系列放大器固件可以通過ProVisionaire Amp Editor應用程序進行更新。有關詳細信息，請參見ProVisionaire Amp Editor設置指南。
* XMV系列放大器不支持ProVisionaire系統監視服務。
支持系統監視的設備
從網絡設備列表中選擇要監視的功能

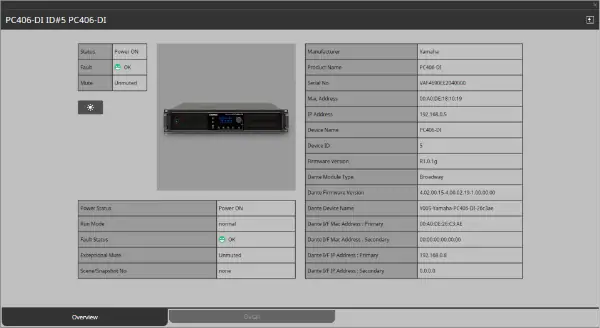

所選設備的基本信息

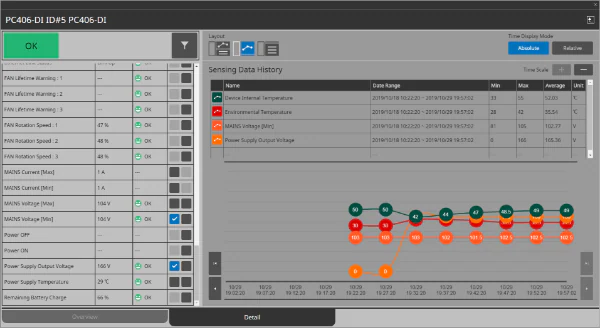

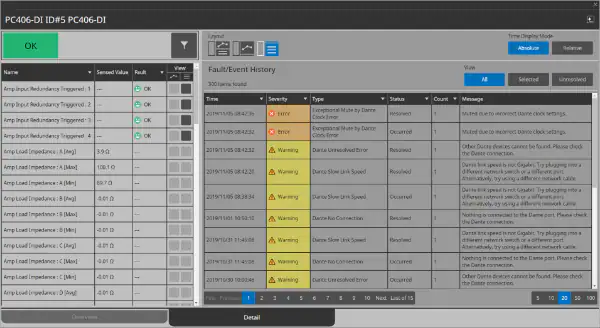

所選設備的運行狀態和歷史監控
3.子網設備的控制
ProVisionaire Amp Editor可對不同子網上的設備進行控制。這意味著一臺計算機可以對多功能設施（如主題公園和購物中心）提供所有必要的控制，在這些設施中，多個子網上的多個區域必須獨立運行。
